1-1470109-0
Manufacturer:
TE Connectivity
Mfr.Part #:
1-1470109-0
Datasheet:
Description:

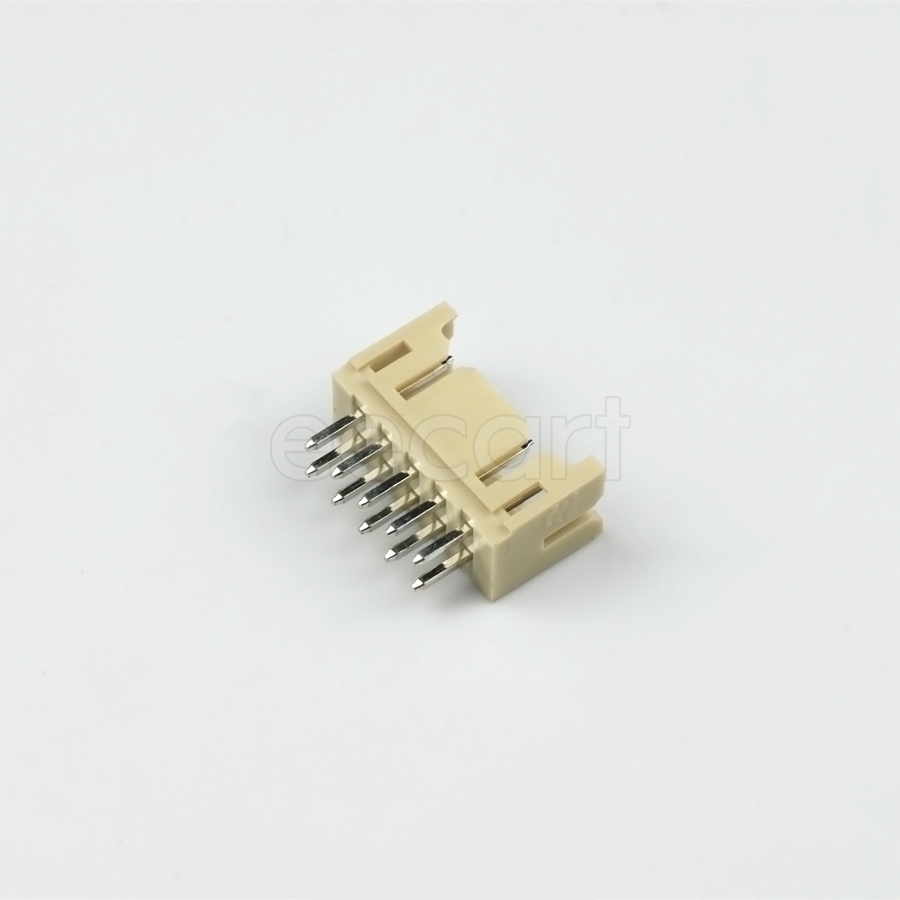

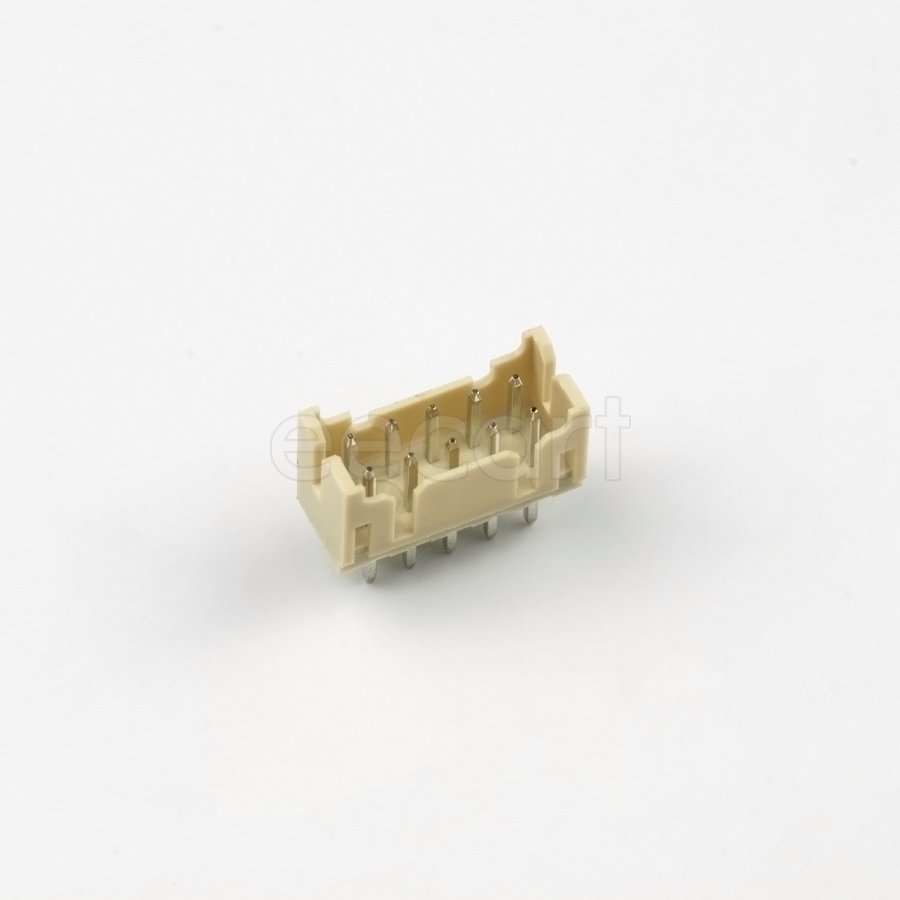

Board to Board Connectors Through Hole Header, Pin, Plug Number of Positions:10 Number of Rows:2 Row Spacing:2 mm Pitch:2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 100 V |
| Length | 12 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Height | 6.5 mm |
| Packaging | Bulk |
| Voltage Rating | 100 V |
| Depth | 5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| Contact Plating | Tin |
| Lead Length | 3 mm |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2 mm |
| Current Rating | 3 A |
| Max Voltage Rating (DC) | 100 V |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Natural |
| Number of Contacts | 10 |
| ELV | Compliant |
| Connector Type | Header, Pin, Plug |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2 mm |
| Housing Material | Thermoplastic |
| Contact Style | Pin |
| Contact Current Rating | 3 A |
| Housing Color | Natural |
| Plating | Tin |
| shrouded | Yes |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.57 mm |
| Plating Thickness | 100 µm |
| Mating Post Length | 3 mm |
| Contact Shape | Square |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Contact Finish Thickness - Mating | 100 µm |
| Mating Alignment | With |
| PCB Mount Retention | Without |
| Mounting Angle | Straight |
Stock: 2442
Distributors
pcbx
pcbxUnit Price$0.26930
Ext.Price$0.26930
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.26930 | $0.26930 |
| 10 | $0.22143 | $2.21430 |
| 50 | $0.21885 | $10.94250 |
| 100 | $0.21630 | $21.63000 |
| 500 | $0.19105 | $95.52500 |
| 1000 | $0.16874 | $168.74000 |
| 3000 | $0.14904 | $447.12000 |
| 5000 | $0.13164 | $658.20000 |
| 10000 | $0.11627 | $1162.70000 |
